LUX-14

Tactical Night Vision Monoculars

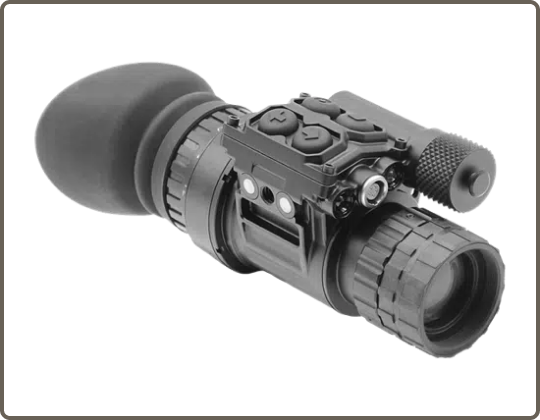

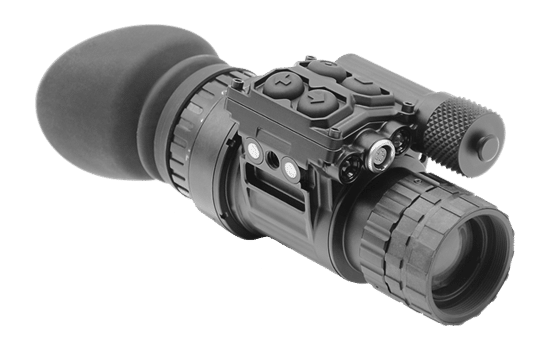

Introducing the LUX-14, the pinnacle of cutting-edge night vision technology designed specifically for elite military and law enforcement operations. This advanced monocular is purpose-built to meet rigorous MIL-SPEC standards, ensuring unparalleled performance in the most demanding environments.

Equipped with state-of-the-art digital push button controls, the LUX-14 allows seamless operation even while wearing tactical gloves. Its compact and lightweight design makes it the smallest and lightest monocular in its class, weighing a mere 250 grams with 18mm gold standard tubes. Despite its diminutive size, the LUX-14’s nitrogen purged fully aluminum housing guarantees exceptional durability and reliability, withstanding the harshest weather conditions.

The LUX-14L delivers optimal image quality, providing operators with a clear and bright vision in low light settings. Its proprietary GSCI-VIVID high-performance front and rear optics, the lightest optics available today, ensure an unrivaled viewing experience. This upgraded version of the traditional night vision monocular system incorporates the latest technological breakthroughs, incorporating feedback from expert users and benefiting from GSCI’s engineering achievements spanning over three decades.

As one of the few leading manufacturers worldwide, GSCI Advanced Photonics maintains a substantial inventory of Image Intensifier Tubes (IITs) from various suppliers. This guarantees timely delivery of LUX-14 systems equipped with any desired IITs, including Gen. 2+, Gen. 3, ECHO*, ECHO* Elite, 4G*, 4G* Elite, and 4G* Elite Plus, available in both green and white phosphor configurations with FOMs up to 2400+. We proudly offer this cutting-edge night vision device to our authorized distributors in OEM tubeless kits, ensuring exceptional quality and performance for our valued customers in the field.

Looking to purchase the LUX-14?
Free shipping in Europe

LUX-14 Features

  • Ergonomic and Tactile Push-Button Controls
  • Stow Safety and Flip-Up-Off Features
  • Exceptional Situational Awareness

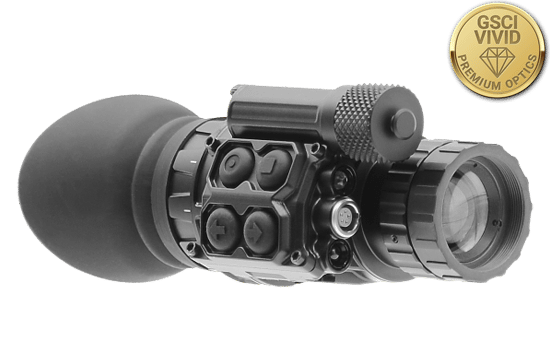

  • GSCI-VIVID Premium Optics Upgrade (LUX-14L)
  • Extended Range Observation
  • Rugged Aluminum Enclosure
  • Ultra-Lightweight and Compact

Технические данные

LUX-14 LUX-14L
Lens System 27mm. f/1.2 27mm. f/1.2
Diopter Adjustment Range -6 ... +2 -6 .. +2
Proprietary GSCI-VIDID Premium Optics No Yes
Digital Push Button Controls Yes Yes
Optical Magnification 1X 1X
Field Of View (FOV)* 40° 40°
IR Illuminator Yes: Built-in Yes: Built-In
Bright Light Sensor Yes: Built-In Yes: Built-In
IR LED Indicator Yes Yes
Bright Light LED Indicator Yes Yes
Low Battery LED Indicator Yes Yes
Stow Safety Feature Yes Yes
Flip-Up-Off Feature Yes Yes
External Power Port Optional Optional
Power Source 1x AA, 1x CR123 or MVP-240 1x AA, 1x CR123 or MVP-240
Battery Life (AA) 40 Hours 40 Hours
Battery Life on MVP-240 240 Hours 240 Hours
Environmental Protection Waterproof Waterproof
Operating Temperature -40°C .. +50°C -40°C .. +50°C
Dimensions 109 x 58 x 51 mm 104 x 58 x 51 mm
Weight 202 grams** 162 grams**
Warranty 7 Years, Limited 7 Years, Limited

* Field Of View (FOV) values are valid if the system is equipped with an 18mm Image Intensifier Tube

** Weight of the unit excludes an IIT due to its weight variations. Typical weight of an IIT is between 70 and 85 grams as per IIT manufacturers' specifications.

Specifications are presented for optical-electronic-mechanic assemblies only and do not include technical characteristics of image intensifier tubes.
