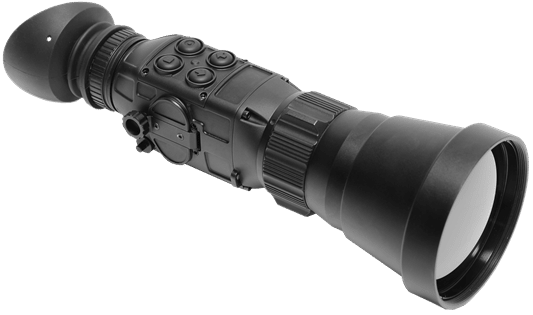

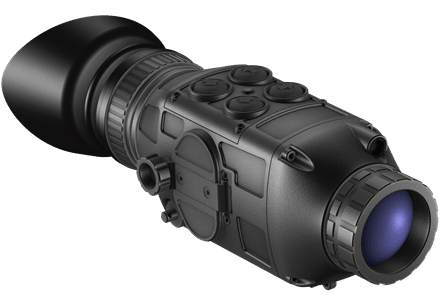

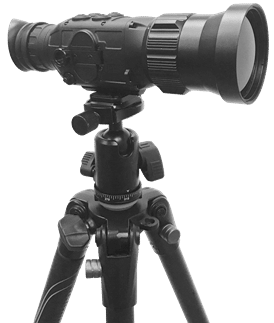

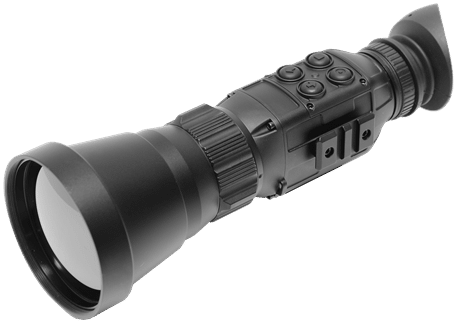

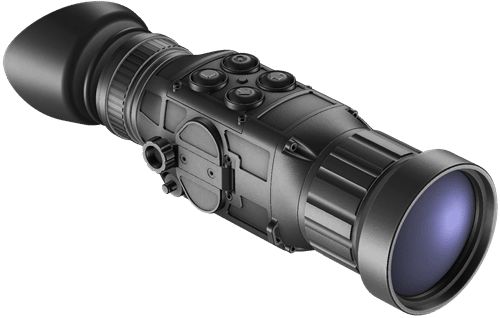

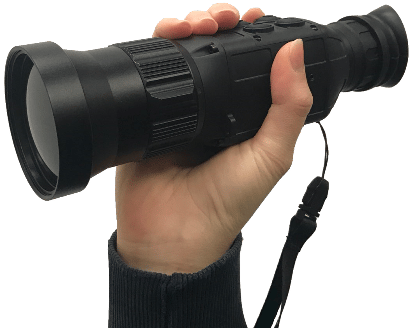

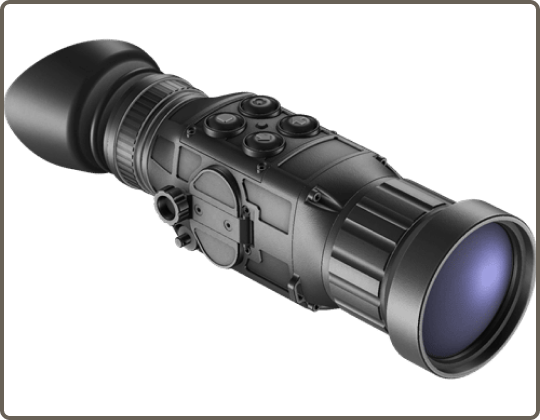

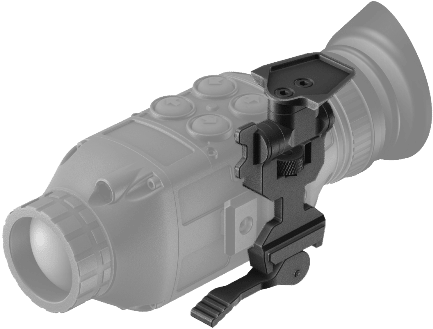

Presenting the TI-GEAR-M, a pinnacle of professional-grade thermal monocular meticulously engineered for a multitude of applications, with a primary focus on reconnaissance and tactical surveillance across medium and long distances.

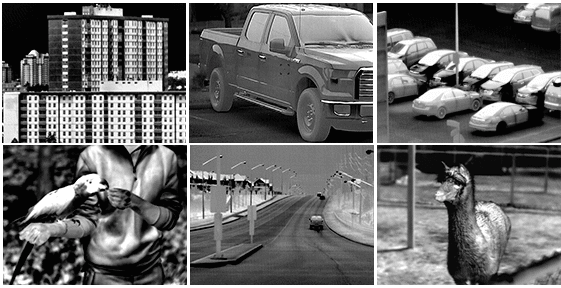

At the core of the TI-GEAR-M resides the latest generation sensor, embodying GSCI’s unwavering dedication to cutting-edge technology. Complemented by GSCI’s proprietary hardware and software solutions, this sensor yields exceptional image quality, while offering unique tools that bestow tactical advantages and ensure user safety.
Unyielding in its durability, the TI-GEAR-M is fully dust- and waterproof, surpassing the demanding standards set by modern benchmarks. This robust and reliable tool thrives in the face of long-term, intensive use, exhibiting unwavering performance across any environment, irrespective of challenging lighting conditions or inclement weather scenarios.
The TI-GEAR-M epitomizes GSCI’s commitment to equipping professionals with an unrivaled thermal imaging monocular, tailored to deliver exceptional performance during reconnaissance operations and tactical surveillance missions. It sets new standards for reliability and image quality, empowering users to achieve unparalleled situational awareness.
Free shipping in Europe
| TI-GEAR-M 17µm Series | TI-GEAR-M 12µm Series | |
|---|---|---|
| Sensor Resolution | 640×480 | 640×512 |
| Pixel Pitch | 17 microns | 12 microns |
| Detector Type | Uncooled, a-Si | Uncooled, VOx |
| Refresh Rate | 9Hz or 50Hz | 9Hz or 50Hz |
| Optical Zoom Options | 1x / 2x / 3x / 4x | 1.4x / 2.8x / 4.25x / 5.7x |
| Digital Zoom | 1x, 2x, 4x, 8x | 1x, 2x, 4x |
| Stow Safety Feature | Yes | Yes |
| 9-Axis HUD Feature | Yes | Yes |
| Digital Video Recorder | Optional | No |
| Universal Port/td> | Yes | Yes |
| Power Source | 2x CR123 or MVP-240 | 2x CR123 or MVP-240 |
| Battery Life (2x CR123) | 7 Hours | 6 Hours |
| Battery Life on MVP-240 | 25 Hours | 24 Hours |
| Environmental Protection | Waterproof | Waterproof |
| Operating Temperature | -40°C .. +50°C | -40°C .. +50°C |
| Warranty | 7 Years, Limited | 7 Years, Limited |
* Field Of View (FOV) values are valid if the system is equipped with an 18mm Image Intensifier Tube
** Weight of the unit excludes an IIT due to its weight variations. Typical weight of an IIT is between 70 and 85 grams as per IIT manufacturers' specifications.
Specifications are presented for optical-electronic-mechanic assemblies only and do not include technical characteristics of image intensifier tubes.
